GREASE SEPARATOR | SG-ECO PE 100
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
| MODEL | Volume (l) | Dimensions (LxIxH) | He (mm) | Hs (mm) | C (mm) | Ø Pipe (mm) | FT |
|---|---|---|---|---|---|---|---|
| SG ECO PE 100 | 100 | 570 x 420 x 420 | 275 | 255 | Rectangular abertura total | DN50 |
|
Legend:
L - Length | H - Height | I - Width | LT - Overall width | D - Diameter | C - Cover | He - Cota Piping Input |
Hs - Piping Output Quota | FT - Technical Data | DT - Technical Drawing | The dimensions (in mm) are given as an indication, with tolerance of ±2%, and can be changed without notice.
Hs - Piping Output Quota | FT - Technical Data | DT - Technical Drawing | The dimensions (in mm) are given as an indication, with tolerance of ±2%, and can be changed without notice.

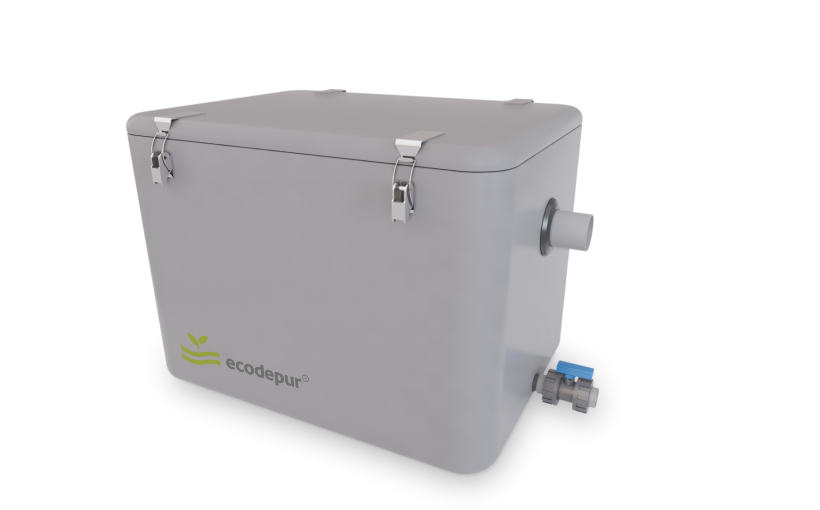

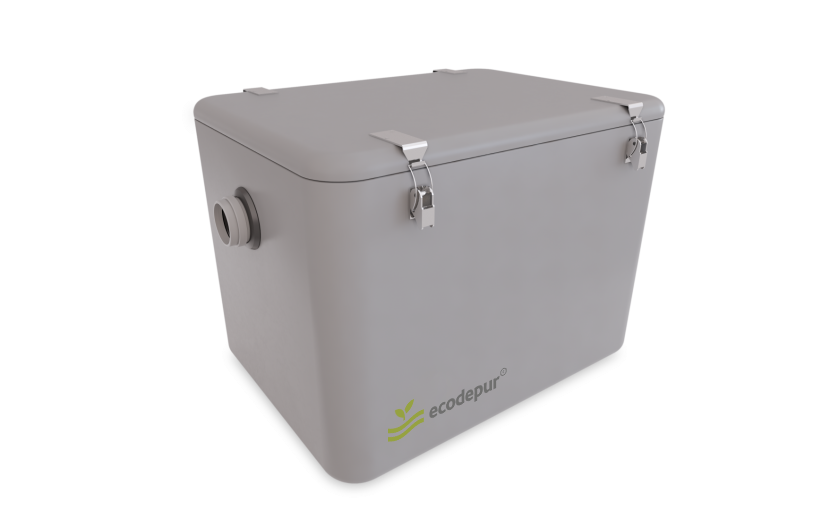

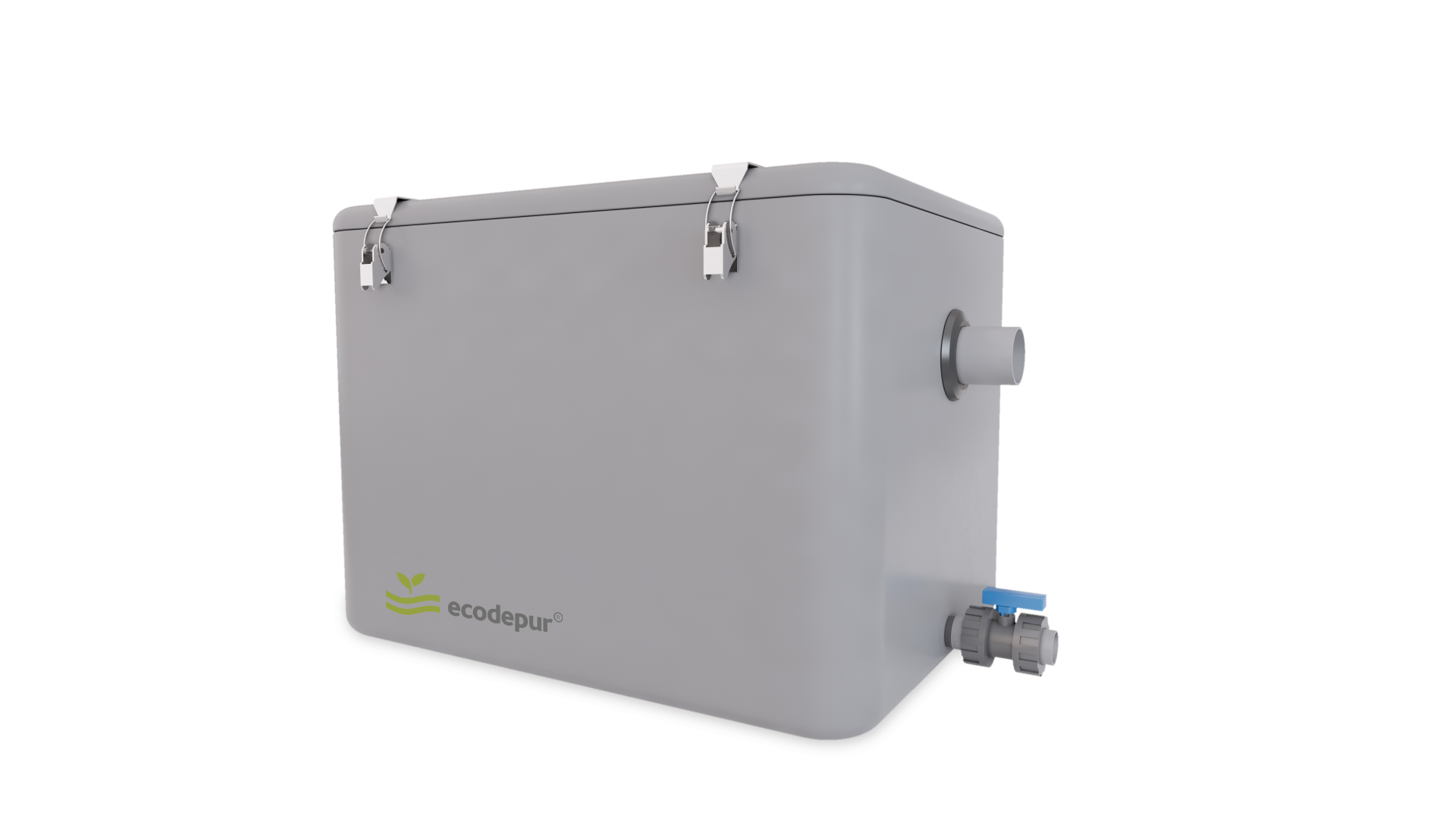

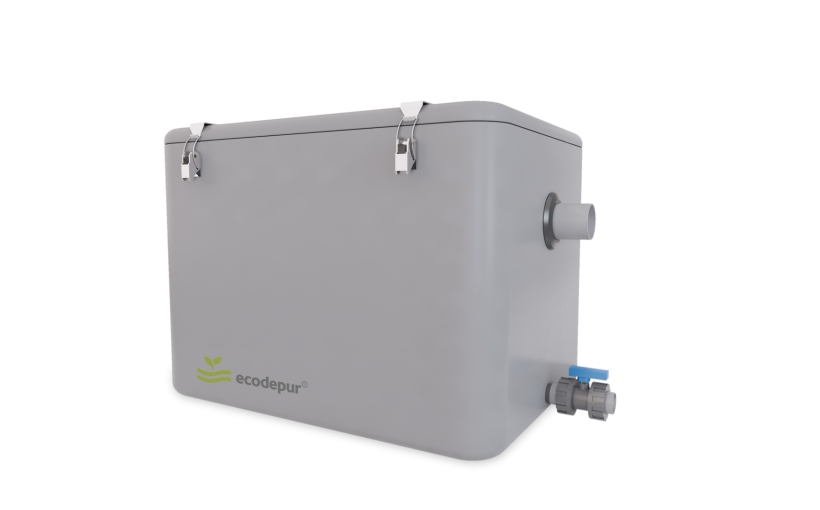

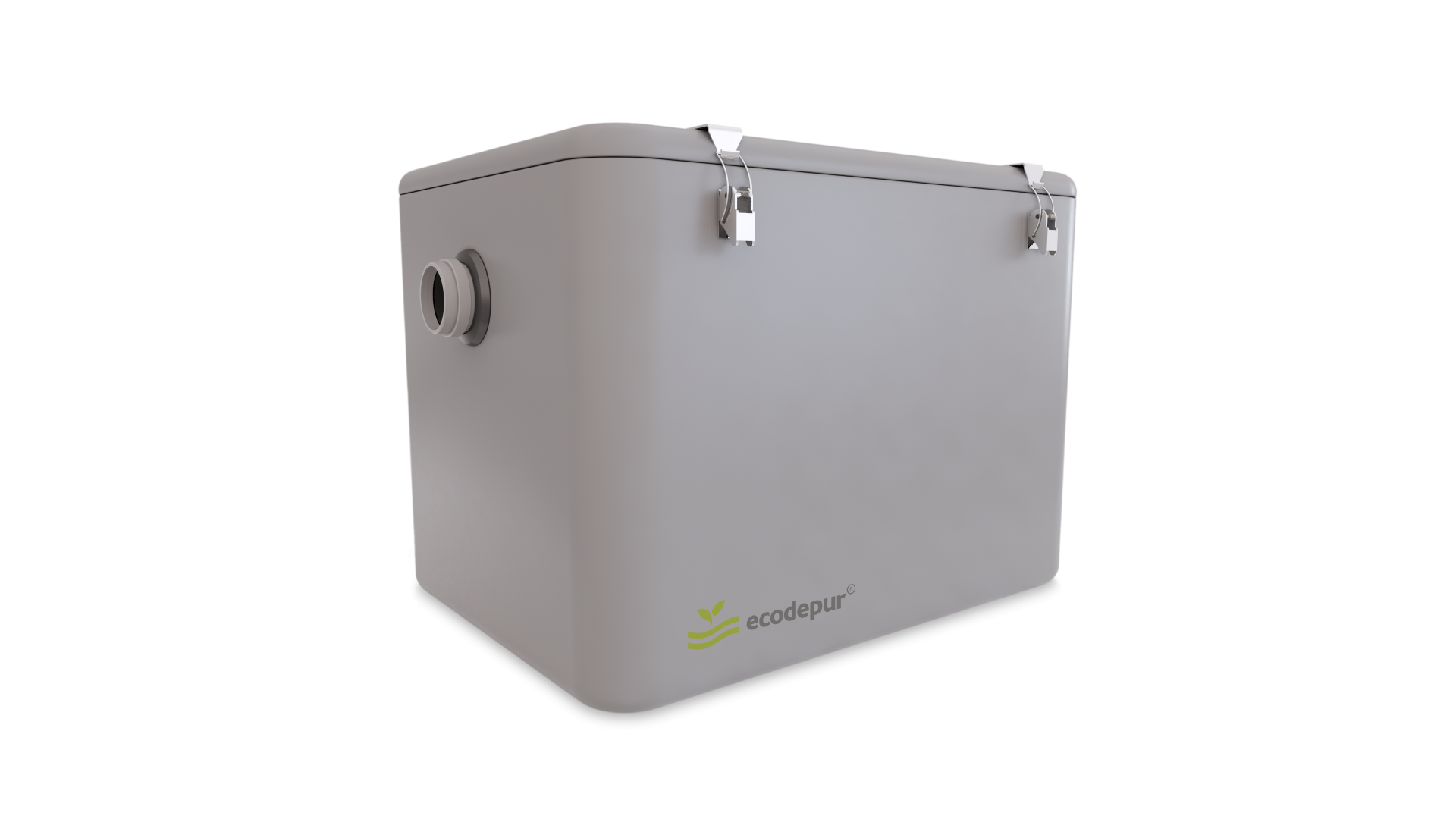

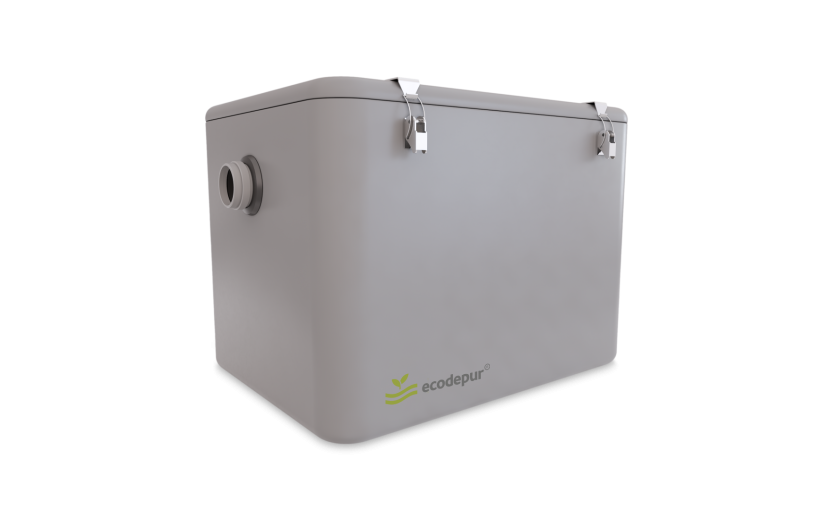

Grease Separator SG-ECO PE 100 are manufacture in Linear Polyethylene and their goal is the reception and treatment of fat wastewaters from the handling of food products in a domestic or industrial environment.
APPLICATIONS
Its recommended Grease Separators use in the following locations:
- Restaurants;
- Lunchrooms and Canteens;
- Schools;
- Bars and coffeshops;
- Hotels;
- Among others.
ECODEPUR® ENZYMATIC ACTIVATION KIT
ECODEPUR® ENZYMATIC ACTIVATION KIT is a biological solution dispenser for fat/grease digestion. This biological solution is an extremely active biological product based on microorganism cultures, enzymes and supplements for oligoelements and growth factors, for liquefaction and digestion of fats, grease, oils, proteins, starch and cellulose.
ECODEPUR® BIOLOGICAL SOLUTION TO DEGRADE OILS AND FATS
Highly concentrated enzyme solution containing a range of high-performance micro environmental organisms, specifically adapted for biological treatment of oils, fats and removal of the excess of organic matter in sewage treatment plants.
